Concrete Boom Pumps on Trucks

Inspections and Certification

Tower Boom 19m

Tower Boom 22m

Tower Boom 24m

Tower Boom 32m











Concrete Placing Booms Mounted on Tower







Concrete placing boom on the lattice tower installed in the shaft, free standing or self climbing

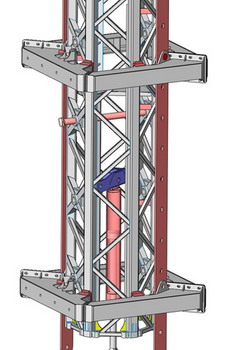

Self climbing hexagon

lattice tower

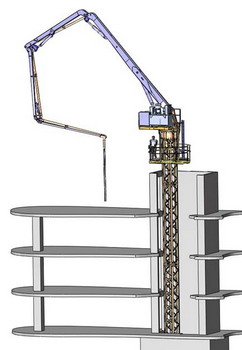

CAD model of the free standing lattice

 tower for detachable concrete

boom pump 28 m





Tower concrete placing boom stabilised

by counterweight on the special frame



Stress analysis of the frame,

 connections and reaction forces



































We have performed a design, analysis and consulting for many concrete placing booms mounted on a tower, from 20m to 42m horizontal reach. The placing booms have been installed on the designed tubular or rectangular columns as well as on the designed or adopted lattice towers.



Towers and columns can be free standing or self climbing, or even installed on the slip or the jump form at high rise building. In many cases we designed the steel support base for distribution of the load on the wide area of the formwork system.



The truck mounted concrete booms can be efficiently redesigned to be detachable and be quickly installed on the tower and on the truck either.



In the constrained environment when the counterweight and its frame can not be applied, then the reinforcement of the current columns is the solution using all existing accessories, floor frames, lifting hydraulic cylinders, main pins etc.



We carry out inspections and certifications as well as assessment for continued operation for the tower placing systems in accordance to current regulations by Operational and Health Safety Authority and Australian Standard.



Design verification for new concrete placing booms should be carried out before their import or fabrication in accordance to new OH&S Regulations  from 2011.

Milop senior engineers are highly competent and qualified to perform the verification efficiently at customers satisfaction.



Certification after six yearly overhaul

Our engineers will inspect the placing boom and give advice about the most efficient way for the six yearly overhaul. After completed maintenance works, the final load tests, with 25% overload,  will be applied on the boom. After the successful testing the Six yearly certificate will be issued.



_________________________________________________________________________________________________



The modified truck placing boom

installed on the lattice tower



Detachable tower placing boom 28m

installed on the free standing lattice tower















Tower for the 28 m concrete placing boom installed on the jump form

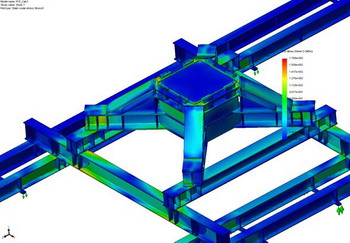

Analysis of the steel frame and the tower base

 for installation TB28 m on the jump form.











Steel frame is supported by formwork





The tower and the base - stress analysis

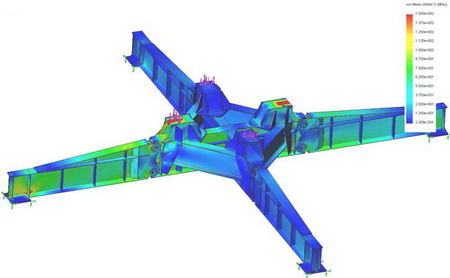

Cross base with detachable legs

 used for lattice tower where

 the ground pressure was restricted.

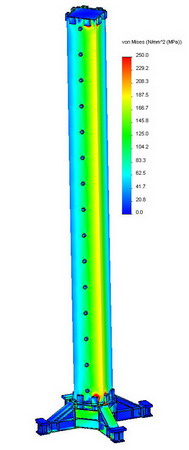

Stress analysis of the tower column





CAD model of the self climbing lattice tower



  _________________________________________________________________________________________________

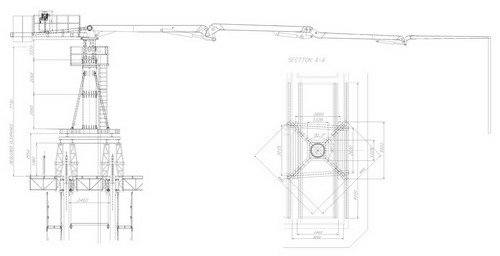

Tower placing boom 24 m installed on the slip form

_________________________________________________________________________________________________

                                                                                                                    Go to the top of the page



                      Tower Placing Boom 19 m



Tower boom 19m designed for circular columns



_________________________________________________________________________________________________

                                                                                                                    Go to the top of the page

                          Tower boom 22m, free standing, and self climbing





Tower boom 22m, self climbing, designed for circular columns

_________________________________________________________________________________________________

                                                                                                                   Go to the top of the page





                   Tower boom 24m, free standing, and self climbing









_________________________________________________________________________________________________

                                                                                                                           Go to the top of the page





                              Tower Placing Boom 32 m









































































































          Concrete placing boom 32 m installed on the circular tower columns



_________________________________________________________________________________________________

                                                                                                    Go to the top of the page
