Truck Concrete Boom Pump 17/13/3/125


Boom Specifications:  3 stages

Maximum vertical reach

17.0 m

Maximum horizontal reach

13.0 m

Stages:

Length

Operating angle

1st stage:

5.0 m

-30 900

2nd stage:

4.2 m

00 to 1800

3rd stage

3.8 m

00 to 2250

Swing angle:

3650

Concrete pipeline, dia

125 mm

 End hose, ID /length

100 mm/ 4.0 m

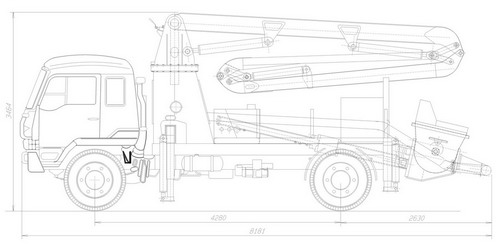

General arrangement 17 m boom on truck Nissan
