Truck Concrete Boom Pump  23/19/3/125

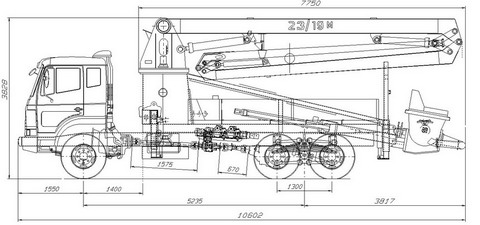

Assembly dimensions:

Truck wheel base , WB 5 235 mm

Overhang 3 817 mm

Over all length 10 600 mm

Over all width 2 480 mm

Distance chassis

Max. height 3 830 mm

Total weights:

- Front axle 5.19 t

- Rear axle 14.81 t

Total weight 20.0 t



Based on truck VOLVO

Tare weights:*

Front axle tare 4.42 t

Rear axle tare 3.98 t



BOOM SPECIFICATION

Vertical reach        23 m

Horizontal reach    19 m

Stage

Length

Operational angle

Stage 1:

7.0 m

-30to 90o

Stage 2:

6.0 m

0o to 180o

Stage 3:

6.0 m

0o to 270o

End hose:           4.0 m

Swing angle         3650

Concrete pipeline:  125 mm





PUMP SPECIFICATIONS



Piston Side

Rod Side

Output capacity,   m3/h

55

85

Delivery pressure,   bar

110

70

Strokes per minute,  min-1

20

31

Stroke length 1500 mm

Concrete cylinder, dia 203 mm

Dif.Cyl 114.3/ rod 70 mm

Hopper capacity,          700 lit

Water tank capacity     500 lit

Concrete boom pump 23 m installed on SsangYong truck



Outriggers span and ground pressure:

Front: telescope, hydraulic extended

Rear : hydraulic push down

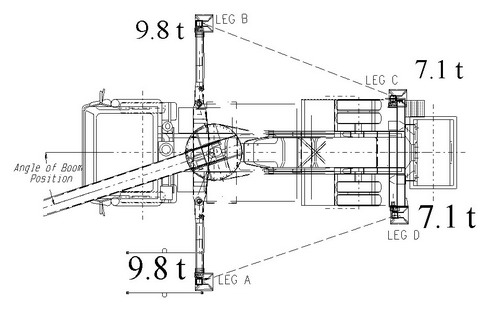

Outriggers ground pressure for 23m boom on SsangYong tuck
