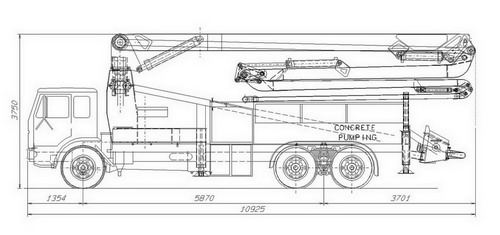

Truck Concrete Boom Pump 29/25/4Z/125









The new three stages have been designed and replaced old two boom arms.

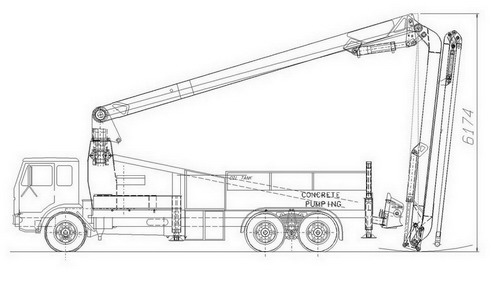

 Z fold booms has been opened under 6.2 m. Front outriggers are X-extended,

rear outriggers are extended.

BOOM SPECIFICATION

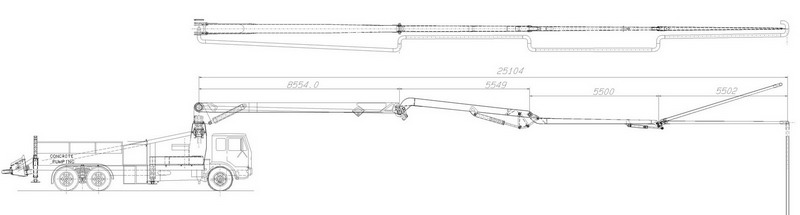

Vertical / Horizontal reach;        29 m/ 25 m
Unfolded Height;                       6.2m
Stage Length Operational angle
Stage 1:             8.5 m -30to 90o
Stage 2:             5.5 m 0o to 180o
Stage 3:             5.5 m 0o to 270o
Stage 4: 5.5 m 0o to 225o
End hose:           4.0 m
Boom Swing angle:        3650
Concrete pipeline:  125 mm
Boom Control Valve,   Proportional
Proportional Radio Remote Control
Wire Remote Control, Standard
Outrigger Front, X Type,
Outrigger Rear, extended,


Boom opening under 6.2 m
