Truck Concrete Boom Pump 36/32/4/125

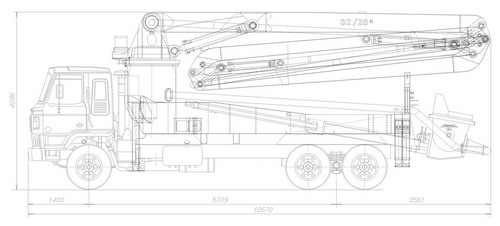

Concrete boom pump 36m installed on Nissan:

Weight of unit:                           15.5 tonne



Boom Specifications:

4 stages boom

Maximum horizontal reach  28.0 m

Maximum vertical reach      32.0 m

Stages:           Length      Operational Angle

1st stage:         7.6 m      -3o to 90o

2nd stage:        6.8 m       0o to 180o

3rd stage          6.8 m       0o to 180o

4th stage:         6.8 m       0o to 225o

Swing angle:    365o

Concrete pipe:     dia 125 mm

End hose:            dia 125 mm, Length 4.0m

Pump Specifications:

Concrete module 2100/8



Piston Side

Rod Side

Output capacity,   m3/h

81

135

Delivery pressure,   bar

132

72

Strokes per minute,  min-1

19

30

Stroke length 2100 mm

Concrete cylinder, dia 203 mm

Hopper capacity,          700 lit

Water tank capacity     300 lit

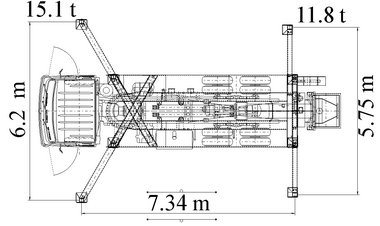

Outriggers span and footprint reactions

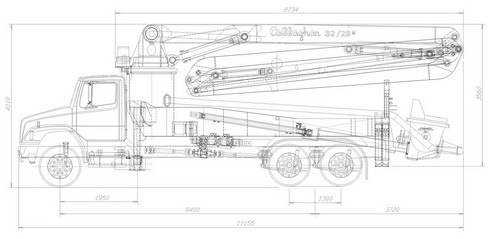

32m installed on Freightliner



32m on MAN truck
