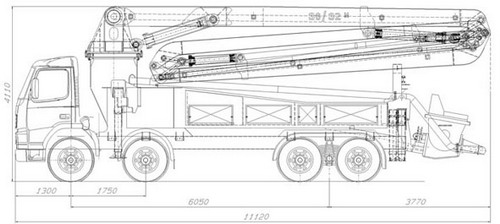

Truck Concrete Boom Pump 36/32/4/125











Concrete boom pump

36/32/4/125 MS 2100/9/5

Weight of machine

18.20 t

Overall length of machine

9 500 mm

Overall width of machine

2 490 mm

Overall height of machine

3 630 mm

Total weights:



Front axle

10.25 t

Rear axle

17.72 t

Total weight

27.95 t

Note: Weights included boom, concrete pump, full hydraulic oil,

 truck (with 100 l fuel and spare wheel, no pipes on the racks,

no water in water tank)

Note: Weights may vary depends of a truck type



Boom Specifications:  4 stages

Maximum vertical reach

36.0 m

Maximum horizontal reach

32.0 m

Stages:

Length

Operating angle

1st stage:

8.7 m

-30 900

2nd stage:

7.8 m

00 to 1800

3rd stage

7.8 m

00 to 1800

4th stage:

7.8 m

00 to 2250

Swing angle:

3650

Concrete pipeline, dia

125 mm

 End hose, ID /length

100 mm/ 4.0 m

Concrete Pump Specifications



Piston side

Rod side

Output capacity (m3/h)

105 m3/h

165 m3/h

Delivery pressure (bar)

108 bar

63 bar

Strokes per minute (at 2200 rpm of oil pump)

20

32

Concrete cylinder, dia

228.6 mm

Differential cylinder, dia

127 mm

Rod, dia

82 mm

Length of stroke

2100 mm

Hydraulic pump

2*A4VG 125

Relief valve setting

350 bar

Hopper capacity

700 lit

Water tank

300 lit

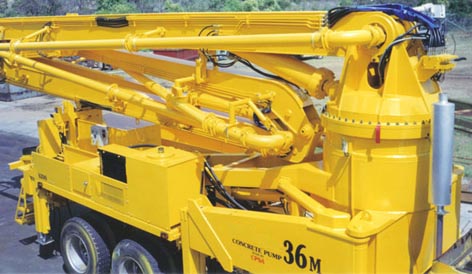

Concrete boom pump 36m on Mitsubishi truck.

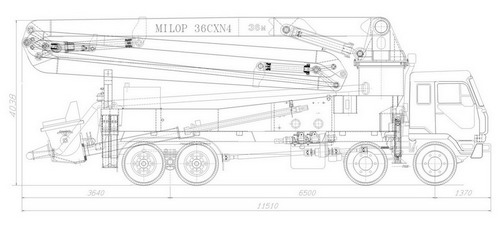

An the customer request the front outriggers are shifted forward in order to adapt to the existing truck

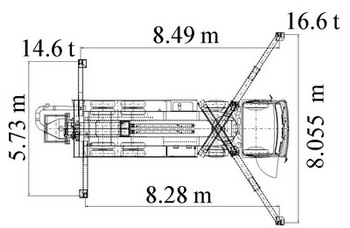

Outriggers span and footprint ground reaction












36m with the swing round front outriggers

36m with the "X" front outriggers
