Truck Concrete Boom Pump 42/38/4/125

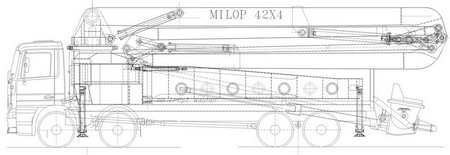

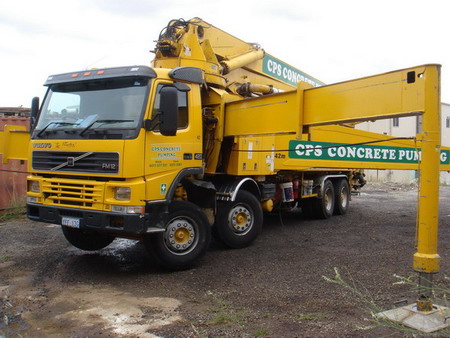

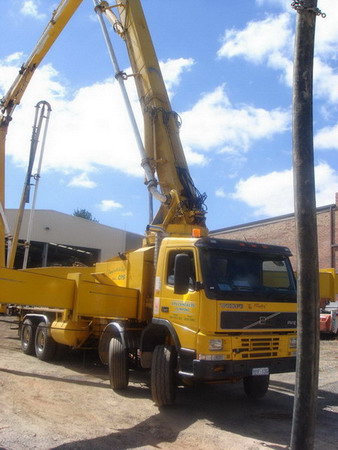

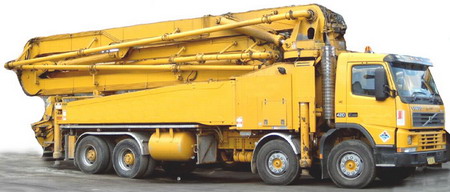

Concrete boom pump 42m, 4 stage, installed on Volvo truck.

BOOM SPECIFICATION

Vertical / Horizontal reach;        42 m/ 38 m

Stage Length Operational angle
Stage 1 10.2 m -50to 90o
Stage 2 9.2 m 0o to 180o
Stage 3 9.2 m 0o to 270o
Stage 4: 9.2 m 0o to 225o
End hose:        4.0 m
Boom Swing angle:        3650
Concrete pipeline:  125 mm
Outrigger Front, telescopic, 2 stage, cross over
Outrigger Rear, swing round

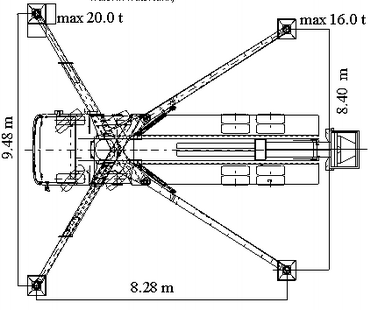

Outriggers footprint reaction: Front 200 kN, Rear 160 kN
PUMP SPECIFICATIONS - S2100-9
  Piston Side Rod Side
Output capacity,   m3/h 98 155
Delivery pressure,   bar 108 63
Strokes per minute,  min-1 19 30

Concrete Cylinder,

dia 228.6 mm

Diffo Cylinder, dia 127 mm/ 82 mm
Stroke (mm) 2100
Hopper capacity 700 lit
Water tank capacity 600 lit
Water Pump hydraulic driven
Vibrator,        optional
S valve size ;  8"x 7"











_______________________________________________________________________________________________________







Truck Concrete Boom Pump 40/36/5/125

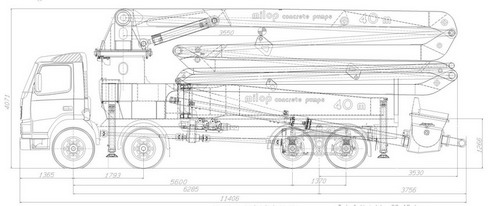

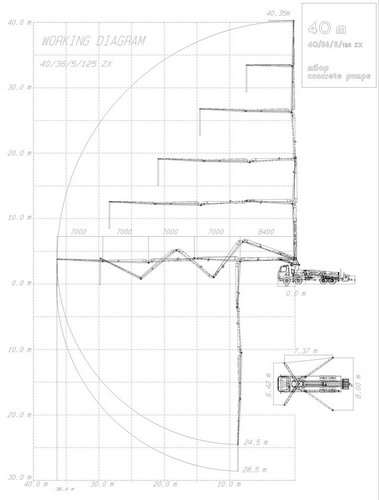

   General arrangement 40m, 5 stages, roll and Z fold concrete boom pump



 The boom unfolds under 7.6 m
